Tru-Close Multi-Adjust Hinge SERIES 3

Starting at

$94.49
$94.49

These heavy-duty polymer hinges were devised to overcome all the problems associated with conventional gate hinges – rust, binding, sagging and staining. The TruClose® MULTI-ADJUST™ Hinges are the world’s most adjustable gate hinges. They’re ideal for self-closing heavy or high-traffic vinyl or composite gates weighing up to 154 lbs (70kg). TruClose MultiAdjust hinges are quick and easy to install and to adjust for self-closing speed. Being highly adjustable they solve gate sag for good!

Blue crossed hammer and wrench symbol on a white background
DIY-FriendlyEasy to assemble
Blue truck icon on a white background
Free ShippingOn orders over $1499
Blue outline of a picket fence on a white background
Low-MaintenancePeace of mind
Blue headphones with a heart symbol on a white background
Lifetime SupportReal people. Real support.

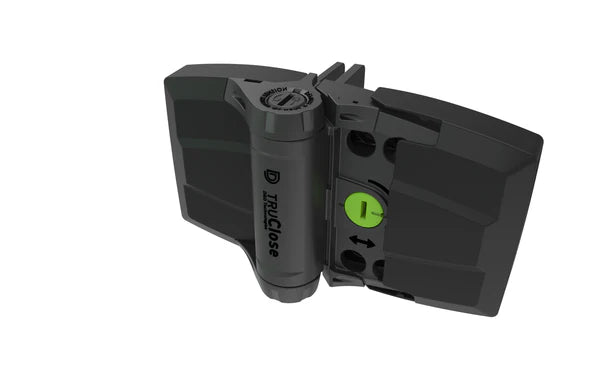

True Close Multi Adjust heavy duty gate hinge stock image
$94.49
$94.49
Overview

Brand -- TruClose®

Product Code -- TCHDMA1S3BT, TCHDMA1S3WT

Gate Application --Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Public/Commercial Gate, Security Gate, Privacy Gate

Gate Type -- Self-ClosingGate

Material -- Vinyl/PVC, Composite

Self-Closing Gate Weight -- Up to 154 lb (70kg)

Approx Gate Size -- 4ft W x 6ft H (1.8m x 1.2m)

Gate Frame/Post Shape -- Square-to-Square

Min Post Size -- 3"+ (75mm)

Ideal Gate Gap -- 5/8 -1 11/16" (16-43mm)

Fixing Method -- Screw-On

Colour/Finish -- Black, White

• 3-way adjustment – horizontal, vertical and tension

• Solves gate sag for good! • Self-closes vinyl or composite gates up to 154 lb (70kg)

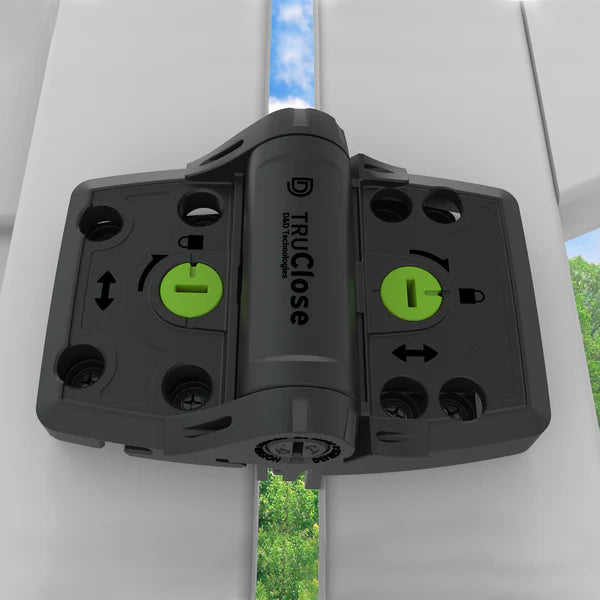

• Quick and simple horizontal and vertical adjustment dials

• Easy tension adjustment from both ends of the hinge

• Gate gap variance range of 5/8” to 1-11/16” (16mm to 43mm)

• Vertical adjustment range up to 15/16” (24mm) • UV stabilized, super-strong engineered polymer • Internal stainless steel spring

• Removable hinge covers and fasteners included

• Reversible mounting (right or left handed gate installation)

Ready to Install?

We offer comprehensive resources to ensure your project is a success, whether you prefer the complete PDF Master Instructions for every detail, or watch our step-by-step installation videos for a quick visual walkthrough of the process. View Warranty

Download Full PDF Installation Guide
